The introduction of the new generation DDR5 memory has left many users torn between DDR4 and DDR5. Additionally, PC enthusiasts face challenges when deciding between XMP and EXPO, both designed to support memory overclocking.
Since the DDR3 era, XMP has been the standard for Intel systems. However, with the release of the Ryzen 7000 series CPUs, AMD introduced the new EXPO standard. The question of which standard is more user-friendly for memory overclocking and compatibility is undoubtedly a key concern for many PC gamers. Therefore, if you’re planning to build your PC soon and want to know the differences between XMP and EXPO, this article will try to clarify them as much as possible.
01
What is XMP (Extreme Memory Profile)?
XMP, or Extreme Memory Profile, is a standard for memory profiles created and maintained by Intel. These profiles contain information regarding memory frequency, latency, voltage, and other details, and guide the motherboard on which memory settings to use.

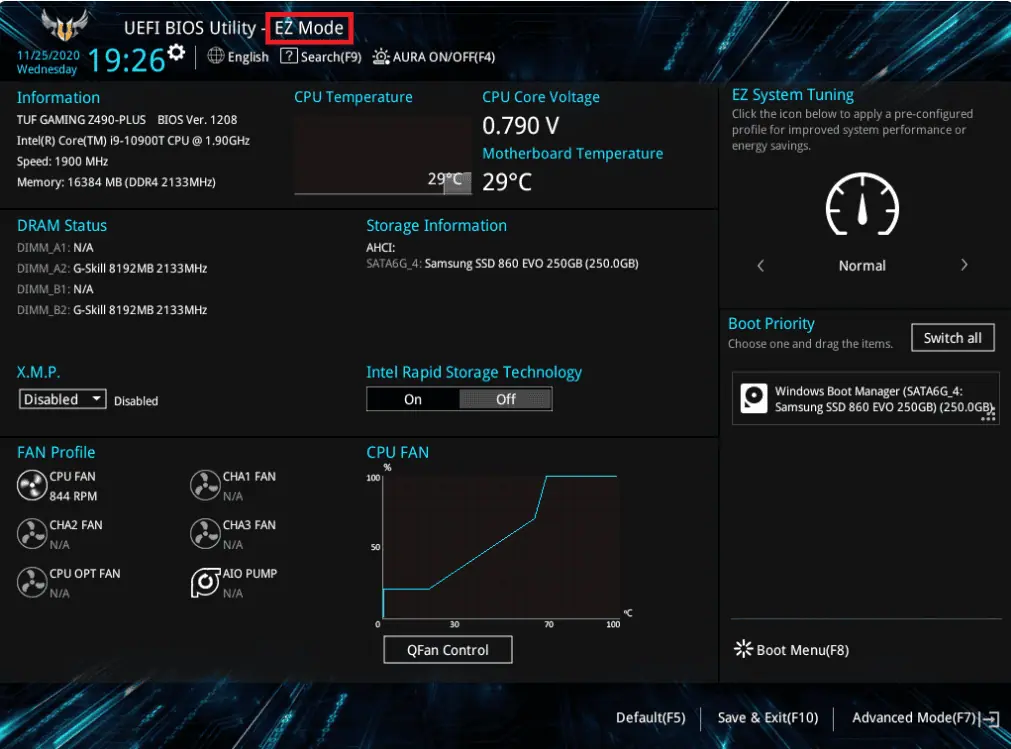

Typically, memory doesn’t run at its advertised speed by default; users must enable the relevant XMP settings in the BIOS for their purchased RAM to operate at high speed and low latency. To ensure maximum stability, memory manufacturers tend to run with the default JEDEC profile of a specific standard. For most DDR5 memory, the default frequency is 4800 MT/s, while for most DDR4 memory, it’s 2133 MT/s. However, through XMP or manual overclocking, some high-quality RAM sticks can run stably at higher frequencies.
In simple terms, Intel XMP is a way to overclock memory frequency and voltage with one click. This method is quite simple and won’t damage the memory in any way, as XMP certification is only provided after testing confirms the memory can run at certain speeds.
02
What is EXPO (Extended Profiles for Overclocking)?
Intel XMP has existed since the DDR3 memory era, but AMD never launched a comparable feature, which led some manufacturers to create their memory profiles, such as DOCP (ASUS) and EOCP (Gigabyte). With the launch of the Ryzen 7000 processors, AMD decided to simplify the process and introduced AMD EXPO (Extended Profiles for Overclocking), enabling users to select the maximum speed of their RAM in the BIOS.
AMD EXPO serves a similar purpose on AMD motherboards as XMP does on Intel motherboards. As more AMD users choose increasingly faster DDR5 memory, it’s important to understand AMD EXPO to fully leverage the maximum performance of their RAM.
03
What are the differences between XMP and EXPO?
AMD EXPO and Intel XMP perform nearly identical functions, but they differ in some areas. First, XMP is a closed standard solely managed by Intel, requiring manufacturers to pass Intel testing for their RAM sticks to be XMP certified. These test results cannot be independently verified since Intel never publicly discloses them.
In contrast, AMD’s EXPO is an open-source standard. Any RAM manufacturer can use AMD EXPO to test their products, and manufacturers can make these results public.
Another difference lies in cross-compatibility. As an open standard, AMD EXPO can theoretically be used on Intel motherboards and processors if Intel allows it, but Intel XMP cannot be used on AMD motherboards. Regardless of whether Intel follows the example of NVIDIA by eventually supporting AMD’s FSR on their GPUs, many manufacturers have begun adopting AMD EXPO and securing Intel XMP certification for their RAM products.
04
Why do you need to enable XMP or EXPO?
Whether using Intel or AMD processors and motherboards, enabling XMP or EXPO ensures that memory performance isn’t compromised simply due to a switch. Using the maximum settings supported by the RAM sticks not only helps achieve optimal performance but also maximizes value for money.
However, keep the following in mind: try to buy RAM sticks listed on the motherboard’s QVL (Qualified Vendor List) to ensure maximum stability; ensure that the motherboard supports the maximum speed listed for the RAM sticks; although AMD EXPO is compatible with Intel, it is not recommended to use EXPO on an Intel platform instead of XMP; while you can manually overclock RAM without XMP or EXPO, these are the easiest ways to boost memory performance.
05
In Conclusion
In summary, Intel XMP and AMD EXPO ultimately serve the same purpose: quick memory overclocking for better performance. However, there are significant differences between them. XMP is closed-source, and for purchased RAM sticks to have this feature, manufacturers must be Intel-certified. In contrast, EXPO is open-source, so memory manufacturers do not need to go through a complicated certification process—they simply need to meet EXPO’s specifications. In terms of compatibility, AMD’s EXPO is also much better than XMP, as it supports use on Intel platforms.
From another perspective, Intel XMP has been around longer, so its technology is relatively mature and stable. For those who prioritize stability in memory overclocking, Intel’s XMP might be a better choice. However, AMD EXPO’s open-source nature is likely to attract more memory manufacturers, increasing the range of supported RAM products. Additionally, the lack of a certification process and associated costs makes EXPO-supported RAM more cost-effective and provides more flexibility for overclocking enthusiasts, making it suitable for those who enjoy tweaking memory settings.
