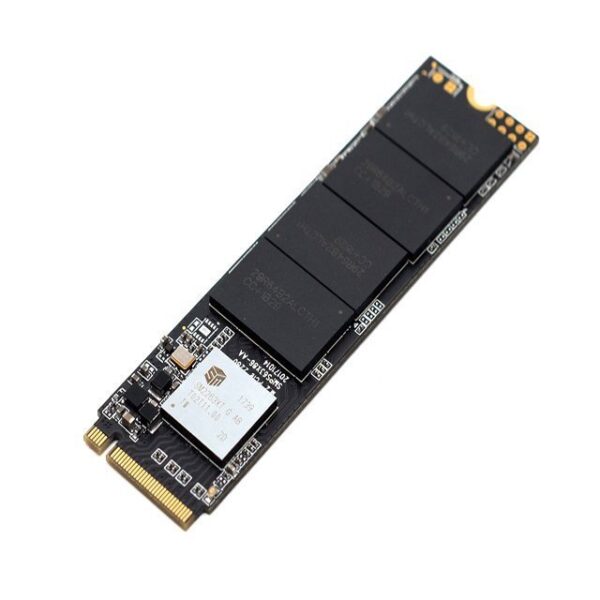

M2 Series M.2 2280 NVMe PCIe Gen4x4Lane SSD

  • Cache: DDR4 at least
  • Reading Speed (7400MB/s), Writing Speed (6700MB/s)
Share:

Additional information

Weight 6.8 g
Dimensions 50.8 × 29.85 × 4.85 mm
Brand

ODM/OEM

Interface

NVMe™ PCIe Gen 4.0 x 4 Lanes

Type

M.2 2280 PCIe

Capacity

512GB, 1TB, 2TB

Storage Media

3D TLC NAND flash

Warranty

Limited 5-year warranty with free technical support

Payment Term

T/T, Western Union, MoneyGram, PayPal

You will get our reply within 24 hours.

Description

Overview

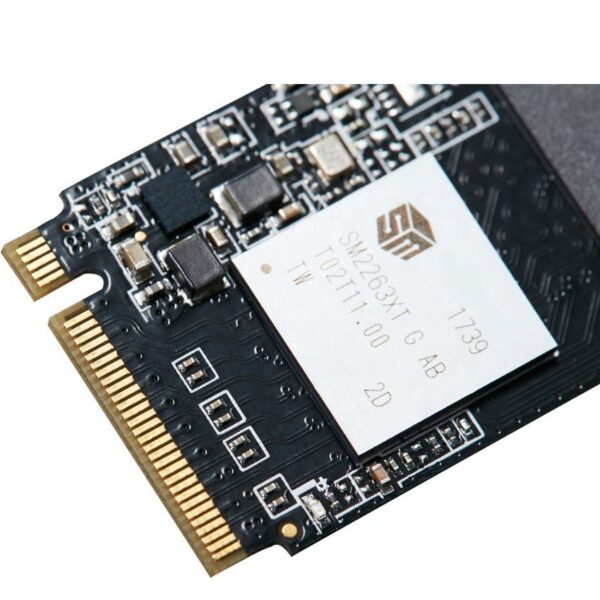

DiskMFR’s first PCIe 4.0 SSD, the S7000 Pro series M.2 PCIe SSD uses a 12nm high-performance control chip with eight NAND channels and supports NVMe 1.4 protocol. The theoretical bandwidth of the data transmission interface is nearly 8GB/s (the PCIe Gen4*4 interface rate is 7.877GB/s).





Physical dimensions and weight

Model Heightmm Widthmm Lengthmm Weight g
DSDNS7PG4XXXTC 4.5 Max 22+/-0.15 80+/-0.15 TBD





External Transfer Rate (Host Transfer Rate): PCIe Gen3x4

Density 120GB 240GB 480GB 960GB
Write (MB/S) 1000 1200 2100 3000
Read (MB/s) 1900 3500 3500 3500





Features

Item M.2 PCIe 2280
Capacity 512GB, 1TB, 2TB
Interface PCIe Gen4x4
Protocol NVMe 1.4
Cache DDR4
Flash Self-Package 3D TLC
Sequential Reading 7400MB/s
Sequential Writing 6700MB/s
4K-64 Third Reading IOPS 350K
4K-64 Third Writing IOPS 690K
Consumption PS3<50mW; PS4<2mW
Duration 1300TBW
Warranty 3-Year Warranty
  • DiskMFR S7000 Pro Series M.2 PCIe SSD uses various heat dissipation designs. Double-sided thermal tape with good thermal conductivity is used to fix the heatsink to maximize heat dissipation and save installation space as much as possible, A multi-stage power management design is also used to further reduce heat generation, and a protection design to reduce overheating frequency is used to ensure the SSD operates in a safe temperature range.
  • S7000 Pro M.2 PCIe SSD temperature comparison: (1) Under normal circumstances, the temperature is around 40℃. (2) At full load, the temperature is about 60℃.
  • The series is equipped with a large DDR4 cache of at least 1GB to effectively improve SSD read and write performance. The measured speed exceeds 7400 MB/s.

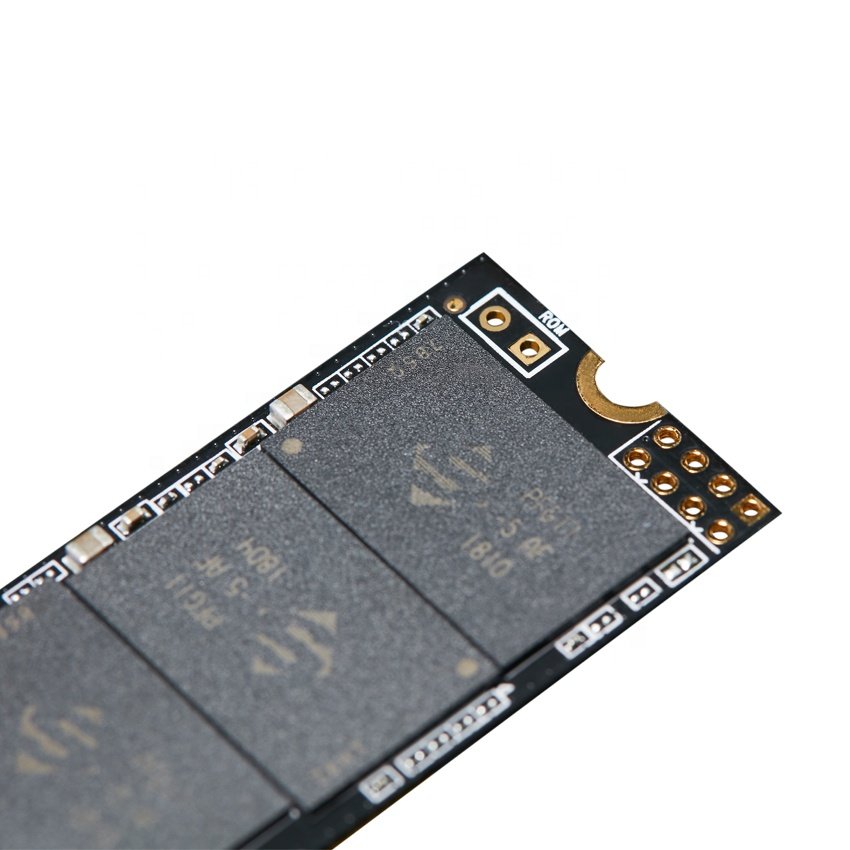

  • S7000 Pro Series M.2 PCIe SSD flash memory uses high-density, high-capacity 3D TLC particles created by DiskMFR’s advanced packaging technology
  • The S7000 Pro M.2 PCIe SSD uses the Intelligent Power Management Unit (IPMU) to achieve different levels of low power consumption. For example, it can support Modern Standby (PS0) power saving mode, which can effectively extend battery life and reduce wake-up time, and support PS3/PS4 power saving mode: PS3 <50mW, PS4 <;2mW.
  • In terms of data integrity protection, S7000 Pro M.2 PCIe SSD adopts an advanced 4K LDPC error correction algorithm and ECC programmable RAID check algorithm to achieve comprehensive data protection and ensure data integrity and product reliability.





Order Information

DSDN8B6309xxxTC/DSDN8B5809xxxTC

DSDNS7PG4XXXTC

TC: Based on TLC NAND Flash

xxx Density
480 480GB
01T 960GB
02T 1920GB



Factory Profile

DiskMFR Single Product company profile cover

DiskMFR™ is a world-leading supplier specializing in the research and development, design, manufacturing, and marketing of industrial solid-state disks (SSD), consumer digital products such as memory card/USB Flash disk, and memory modules.

Since its establishment in 2009, DiskMFR™ has developed innovative products and services based on its commitment to helping customer“access the best”. Our customers include global distributors, equipment manufacturers, and retailers.

We offer high-performance, high-reliability, and high-value memory modules and flash memory products for the industrial control market; for consumers, we design innovative digital storage and peripheral products for everyday use in the recording, storing, and sharing of digital data.

FAQs

Q1: Do you accept ODM/OEM orders?

Of course. We provide experienced one-stop OEM and ODM service. We own the modern factory and professional R & D. Give us your idea for your own product, then we can make it come true.

Q2: How can you guarantee the production quality?

From raw material to finished products, we employ a higher standard at every step of manufacturing. Strict tests and inspections are conducted to guarantee each piece of our SSD and USB flash drives are in perfect condition before shipping.

Q3: What is your MOQ?

Most of our products are in stock, with no request for MOQ. For some products with customized silk printing, we request MOQ 50pcs per design. For special requirements, welcome to contact us.

Q4: Do you provide samples of product?

Yes! Welcome to samples to test and check the goods’ quality, Mixed samples are acceptable.
