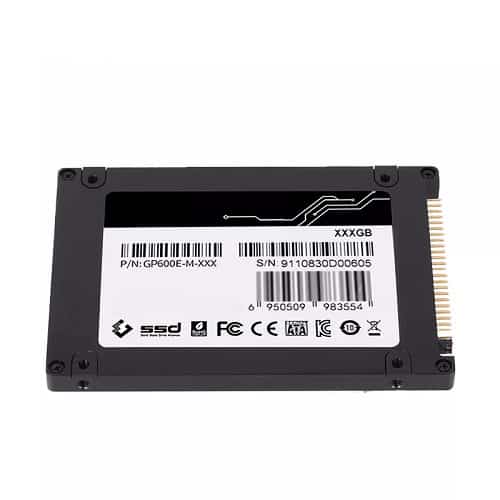

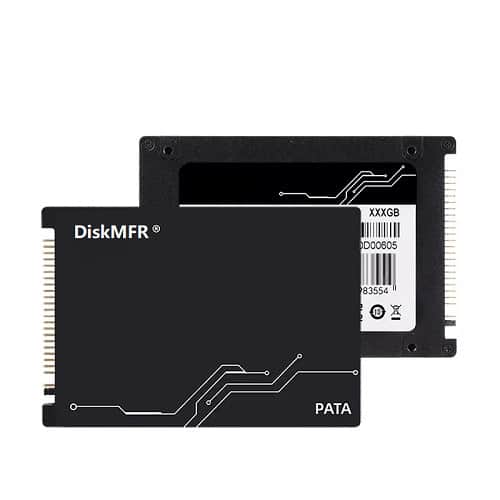

2.5inch PATA SSD

CE, FCC, RoHS, TUV, Low-energy, Shockproof, Mute, High Speed

Share:

Additional information

Weight 80 g
Dimensions 100.2 × 69.85 × 9.5 mm
Brand

ODM/OEM

Interface

PATA

Type

2.5inch

Warranty

Limited 5-year warranty with free technical support

Payment Term

T/T, Western Union, MoneyGram, PayPal

Capacity

16GB, 32GB, 64GB, 128GB, 256GB

Storage Media

SLC, MLC

You will get our reply within 24 hours.

Description

The 2.5inch PATA SSD adopts an advanced industrial SSD controller and NAND FLASH CHIPS, which is fully compatible with ATA-7 protocol and supports different UDMA and PIO modes. And, It is also specially designed with surge protection and temperature sensor for IC and Circuit protection, which improves data transfer safely and stably in harsh conditions. The SSD owns excellent motherboard compatibility and durability and runs stably in mainstream OS, Such as windows OS/MAC/Linux/Unix/Vxworks, which is widely used in the reinforcement computer, industrial control computer, embedded computer, and national defense fields.

Specifications

2.5″ PATA SSD Series
Interface 2.5” PATA
Form Factor 44 pin IDE/ATA 133
Physical Size 100.2*69.85*9.5mm
Flash Type SLC MLC
Density 16GB – 128GB 32GB – 256GB
Life Span 10 years
Performance
Sequential Read
Sequential Write
IOPS 4KB Read
IOPS 4KB Write
up to 90MB/sec
up to 80MB/sec
up to 700
up to 700
up to 80MB/sec
up to 60MB/sec
up to 700
up to 700
Operating Temperature -40°C to +85°C
Storage Temperature -55°C to +95°C
Shock MIL-STD-810F; 1500 G, 0.5 ms;
Vibration MIL-STD-810F; 20 G, 20-20,000 Hz random
MTBF 2 Million Hours
Voltage 5V±5%
Power Consumption Active: 3.5W Idle: 0.8W

Factory Profile

DiskMFR Single Product company profile cover

DiskMFR™ is a world-leading supplier specializing in the research and development, design, manufacturing, and marketing of industrial solid-state disks (SSD), consumer digital products such as memory card/USB Flash disk, and memory modules.

Since its establishment in 2009, DiskMFR™ has developed innovative products and services based on its commitment to helping customer“access the best”. Our customers include global distributors, equipment manufacturers, and retailers.

We offer high-performance, high-reliability, and high-value memory modules and flash memory products for the industrial control market; for consumers, we design innovative digital storage and peripheral products for everyday use in the recording, storing, and sharing of digital data.

FAQs

Q1: Do you accept ODM/OEM orders?

Of course. We provide experienced one-stop OEM and ODM service. We own the modern factory and professional R & D. Give us your idea for your own product, then we can make it come true.

Q2: How can you guarantee the production quality?

From raw material to finished products, we employ a higher standard at every step of manufacturing. Strict tests and inspections are conducted to guarantee each piece of our SSD and USB flash drives are in perfect condition before shipping.

Q3: What is your MOQ?

Most of our products are in stock, with no request for MOQ. For some products with customized silk printing, we request MOQ 50pcs per design. For special requirements, welcome to contact us.

Q4: Do you provide samples of product?

Yes! Welcome to samples to test and check the goods’ quality, Mixed samples are acceptable.
