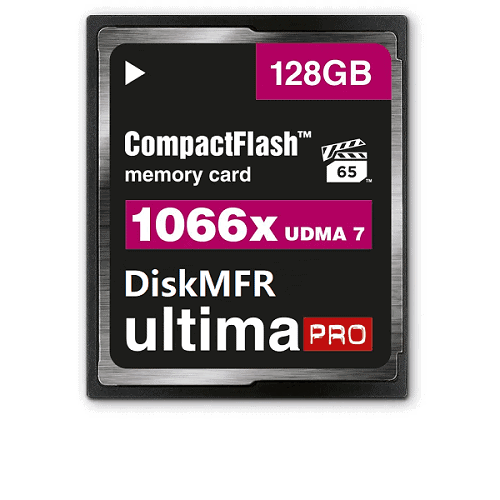

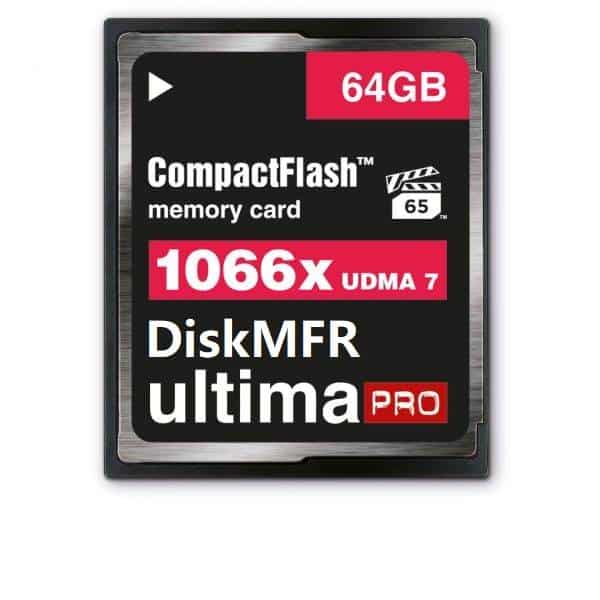

CF card

Compact Flash Card, 8GB-128GB

Weight12 g
Dimensions42.8 × 36.4 × 3.3 mm
Brand

ODM/OEM

Type

Compact Flash Card

Payment Term

T/T, Western Union, MoneyGram, PayPal

Warranty

Limited 5-year warranty with free technical supports

Clear

Details About CF card



  • ModelCompact Flash Card
    GeneralForm Factor3.3*42.8*36.4 mm
    InterfaceCF card
    PerformanceCapacity8GB|16GB|32GB|64GB|128GB
    Sustained Read51MB/S | 70MB/S |81MB/S | 86MB/S | 130MB/S
    Sustained Read41MB/S | 68MB/S |65MB/S | 68MB/S |  70MB/S
    Random IOPS
    4KB Random Read IOPS
    4KB Random Read IOPS
    Average Access Time0.1 ms
    Storage MediaNAND FlashMLC/SLC
    Power ConsumptionInput Voltage3.3V±5%
    IDLE0.4 W
    Active1.35 W
    Reliability & EnduranceWrite EnduranceUnlimited
    Read Endurance8 [email protected] write and erase per day
    Wear-Leveling AlgorithmDynamic and static wear-leveling
    Data Retention10 years @ 25℃
    MTBF1,000,000 hours
    ECCAuto Bad Block Management in System
    EnvironmentOperating Temperature0~70℃
    Non-operating Temperature-45~95℃
    ShockAvailable
    VibrationAvailable
    Ambient Humidity
    Warranty5 years
    Testing PlatformCPU: AMD Athlon 64×2 5200+2.7Ghz, SDRAM: DDR2 800(PC6400) 2048 MBx1PCS, Motherboard: AMD RS780(ATI Radeon HD 3200 Graphics)
    Physical DimensionHeight (mm)3.3±0.05
    Width (mm)42.8±0.05
    Length (mm)36.4±0.05
    Physical WeightWeight (g)12±0.2
    ※ The read and write speed is limited to this test platform, Real speed will be in accordance with your platform

CompactFlash IDE (ATA) emulation speed is usually specified in “x” ratings, e.g. 8x, 20x, 133x. This is the same system used for CD-ROMs and indicates the maximum transfer rate in the form of a multiplier based on the original audio CD data transfer rate, which is 150 kB/s.
