NVMe PCI Express Raid Card SSD

Support High Efficient Wear Leveling, Bad Block Management, TRIM & S.M.A.R.T.

Weight500 g
Dimensions168 × 18.74 × 68.9 mm
Brand

ODM/OEM

Speed

Higher Performance up to 2500MB/s

Payment Term

T/T, Western Union, MoneyGram, PayPal

Warranty

Limited 5-years warranty with free technical supports

Clear

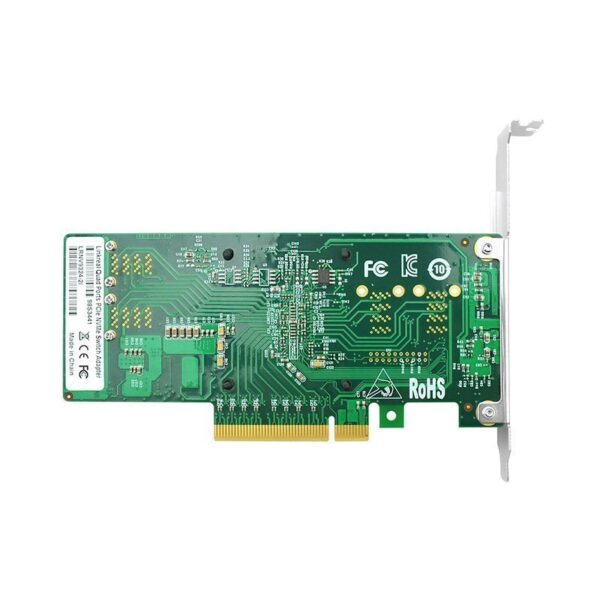

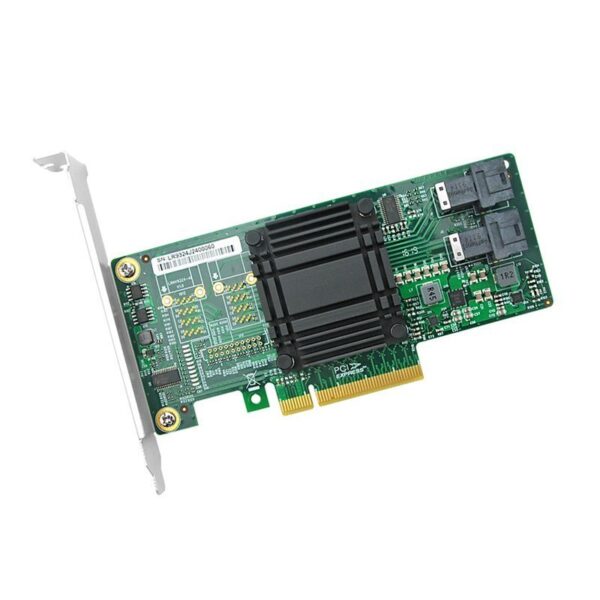

Details About NVMe PCI Express Raid Card SSD

Detailed Description

The NVMe PCIe 3.0×4 Lane AIC HHHL SSD is designed as an NVMe device and complies with the latest NVMe specification, a non-volatile, low-latency, high-performance device is intended for cloud, hyperscale, enterprise data centers and computing environments that require high levels of application acceleration. The SSD can be configured as a boot.

It can be installed in any system that conforms to the PCI Express 3.0 Specification. The modular design allows direct access to the system bus, thereby reducing CPU overhead. The design specifically excludes the use of host resources, with no use of the host CPU, host interrupts, or host memory.

Its design eliminates electromechanical noise and delays inherent in traditional magnetic rotating media. The wear-leveling and bad-block mapping algorithms ensure data integrity. The embedded Error Detection Code and Cyclic Redundancy Checking (EDC/CRC) ensures data reliability.

PCIe SAS/SATA RAID card is a storage solution specially designed for high industrial grade servers, workstations, and databases. Each connection support SAS/SATA 6Gbps, by using PCI Express 3.0 X4 to connect to HBA, worksite, and servers. It can support the advanced RAID function like RAID 0, RAID 1, RAID10, and standard OS, such as Windows\Mac\Linux\ Unix\Solaris\ VxWorks, etc.



Specifications

NVMe PCIe 3.0×4 Series
Storage ConnectivityAIC Form Factor
Half-height
Half-length
Single-slot x4 connector
Components15nm NAND Flash, Multi-Level Cell (MLC)
CompatibilityNVM Express Specification
PCI Express Base Specification
PCI Express Electromechanical Specification
Support Legacy and UEFI BIOS
Capacity512GB – 2TB
Thickness168 x 18.74 x 68.9 mm
Performance
Sequential Read
Sequential Write
IOPS 4KB Read
IOPS 4KB Write
up to 2,500MB/sec
up to 2,000MB/sec
up to 300,000
up to 260,000
Power12V / 3.3V
Shock1500 G, 0.5 ms;
MTBF>2,000,000Hours
Operating Temperature0°C to +55°C, 5 to 90% Non-condensing
Storage Temperature-40°C to +105°C, 5 to 90% Non-condensing
