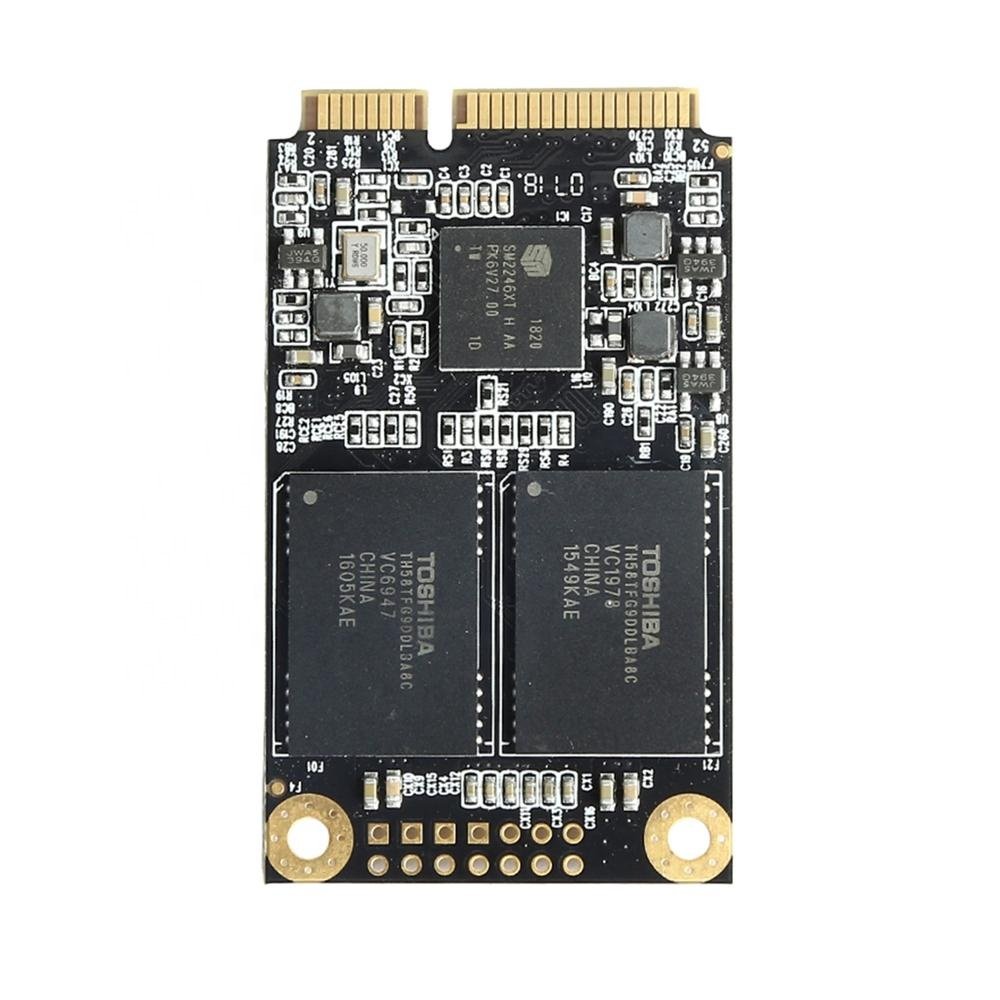

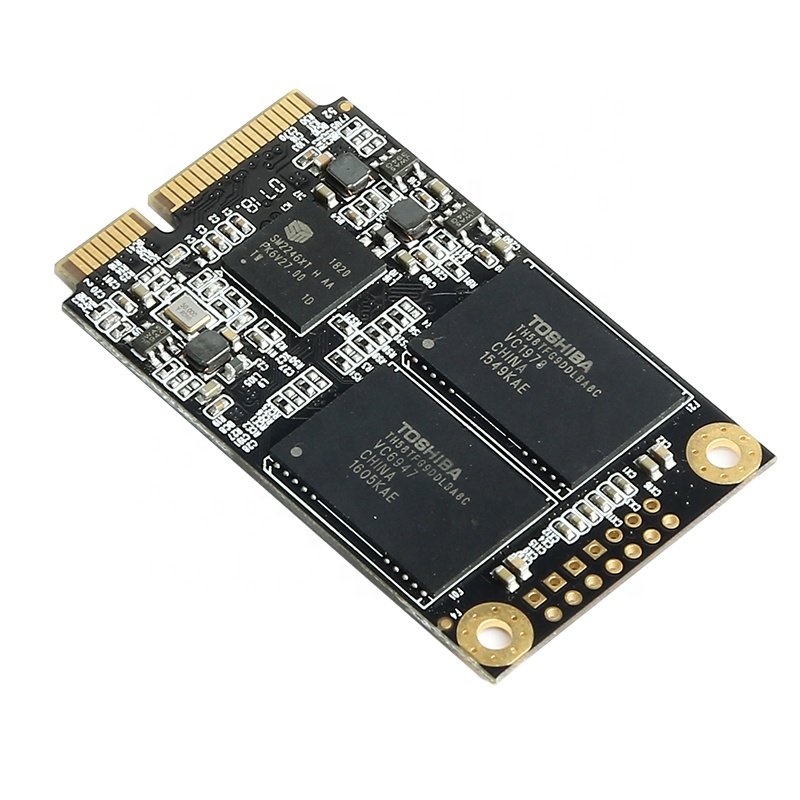

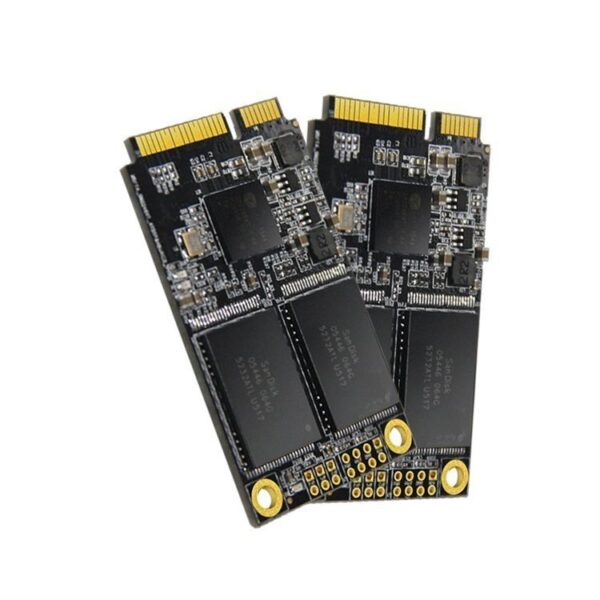

SLC mSATA SATA2 Solid State Drive

CE,FCC,RoHS,TUV,Low-energy,Shockproof,Mute,High Speed

Share:

Additional information

Weight 6.8 g
Dimensions 50.8 × 29.85 × 4.85 mm
Brand

ODM/OEM

Interface

SATA2

Type

mSATA

Capacity

1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB

Storage Media

SLC, MLC

Warranty

Limited 5-year warranty with free technical support

Payment Term

T/T, Western Union, MoneyGram, PayPal

You will get our reply within 24 hours.

Description

Overview

The standard MO300S Series form factor Serial Solid State Drive (SSD) fully consists of semiconductor devices using NAND Flash Memory which provides high reliability and high performance for storage media. The SSD doesn’t have any moving parts such as platter (disk) and head media, which provides a better solution in a notebook PC and Tablet PC as a storage device providing higher performance, reduced latencies, and low power consumption in a small form factor. The SSD could also provide rugged features in industrial PC in an extreme environment with a high MTBF.





User Addressable Sectors

Unformatted Capacity

(Total User Addressable Sectors in LBA Mode)

1GB 1,935,360
2GB 3,865,680
4GB 7,832,552
8GB 15,465,744
16GB 30,932,992
32GB 61,865,984

Notes:  1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.

LBA count shown represents total user storage capacity and will remain the same throughout the life of the drive.

The total usable capacity of the SSD may be less than the total physical capacity because a small portion of the capacity is used for NAND flash management and maintenance purposes.





Specification

Form Factor mSATA
Interface SATA Rev. 2.0 (3Gb/s) – with backwards capability to SATA Rev 1.0
Capacities 8GB | 16GB | 32GB | 64GB (1GB | 2GB | 4GB)
Controller SM2244 | SM2246 | SM2258
NAND SLC | MLC
Sequential Read 85MB/s | 170MB/s | 185MB/s | 190MB/s
Sequential Write 35MB/s | 45MB/s | 80MB/s | 85MB/s
Maximum 4K Read 2400 (32GB)
Maximum 4K Write 355 (32GB)
Average Access Time 0.04ms
Power Consumption 0.195W idle / 0.5W Avg / 1.17W (MAX) read / 2.32W (MAX) write
Input Voltage 3.3V±5%
Dimensions 50.8mm x 29.85mm x 4.85mm
Weight 6.8g
Write endurance [email protected] write and erase per day
Read endurance Unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention [email protected]
ECC Hardware LDPC ECC is capable of correcting errors up to 72-bit / 1KB
Bad block management Auto Bad Block Management in System
Operating temperature 0℃ ~ 70℃
Storage temperature -40℃ ~ 85℃
Operating Humanity 5-90% RH Non-Condensing
Vibration operating 2.17G Peak (7-800Hz)
Vibration non-operating 20G Peak (10-2000Hz)
Life expectancy 1 million hours MTBF
Warranty/Support Limited 5-year warranty with free technical support



Operating Voltage for mSATA Form Factor



Electrical Characteristics



MO300SSeries
1GB,2GB,4GB,8GB,16GB,32GB
3.3 V Operating Characteristics:

Operating Voltage range

Rise time (Max/Min)

Fall time (Min)

Noise level



Min Off time

Inrush Current (Typical Peak)



3.3 V (±5%)

1 s / 1 ms

1 ms

500 mV pp 10 Hz – 100 KHz

50 mV pp 100 KHz – 20 MHz

500 ms

1.0 A, < 1 s

Notes:

  1. Measured from initial device power supply application.
  2. Fall time needs to be equal to or better than the minimum in order to guarantee full functionality of enhanced power loss management.
  3. The drive needs to be powered off for at least 500msec before powering on.





Ordering Information

DSD04A09XXXNC

DSD:    DiskMFR disk

04A: mSATA SATA II Interface

09: Controller is SM2244LT-M

XXX: Density

NC: Based on SLC NAND Flash

XXX Density XXX Density
001 1GB 016 16GB
002 2GB 032 32GB
004 4GB
008 8GB
